Special Patterns

As well as our standard piercing options, we also offer a range of specialist patterns. ​

Examples of special purpose piercing are displayed below; Please provide a detailed drawing if you would like us to work to these patterns.

Security Patterns

4 standard security patterns are available in 84” (2133.6mm) lengths, with other lengths available on request. ​

Holes are pierced in groups of four as shown. ​

For lengths other than 84”, pitches may be adjusted to suit the specified length and to allow for a reasonable start and finish dimension. These details would be agreed with you before manufacture to ensure that you know exactly what you will receive.

SP63520

Width Open64mm
Gauge2mm
Pin Dia6.0mm
Joint Length51mm

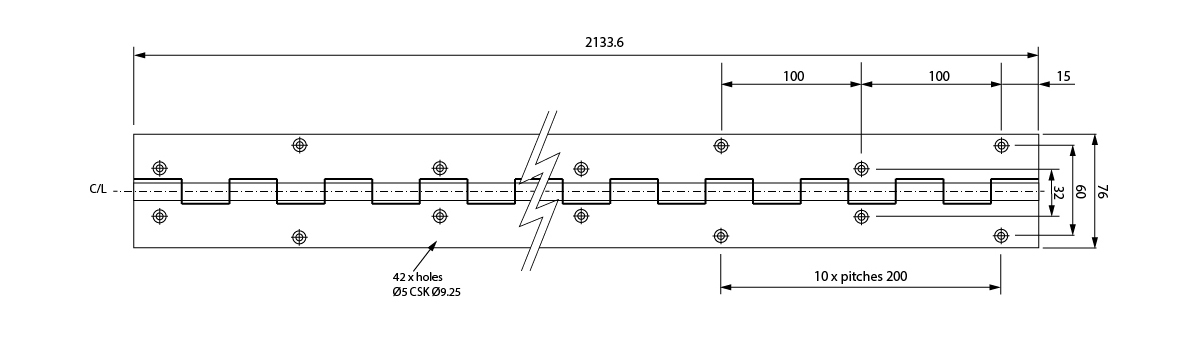

SP76025

Width Open76mm
Gauge2.50mm
Pin Dia6.0mm
Joint Length51mm
SP84250

Width Open102mm
Gauge2.50mm
Pin Dia6.0mm
Joint Length25mm
SP10225

Width Open102mm
Gauge2.50mm
Pin Dia6.0mm
Joint Length25mm
