P505-05

Our P505 hinges are a range of standard style lift-off hinges in a variety of sizes


Material	MS,SS
Holes	Undrilled / To drawing below
Pin	4.7mm
Length	76mm
Width	51mm
Gauge	1.5mm

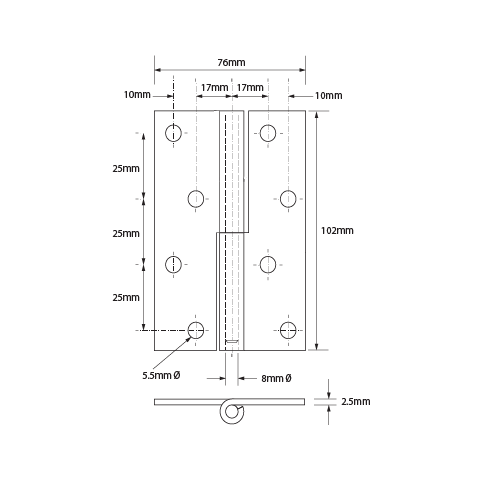

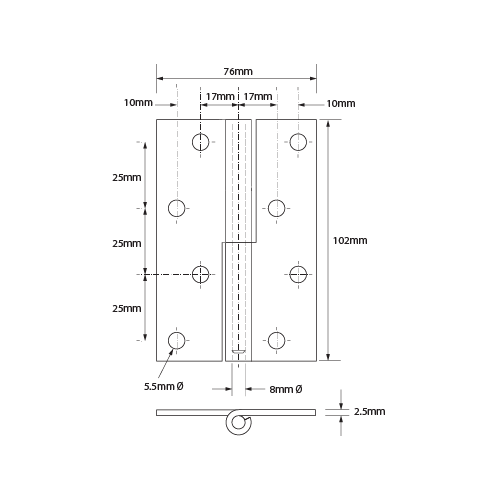

Please note, these hinges are handed. When ordering, please refer to the handing images below and specify if the hinge you need is “Hand As” or Hand Opposite.
