P505-05

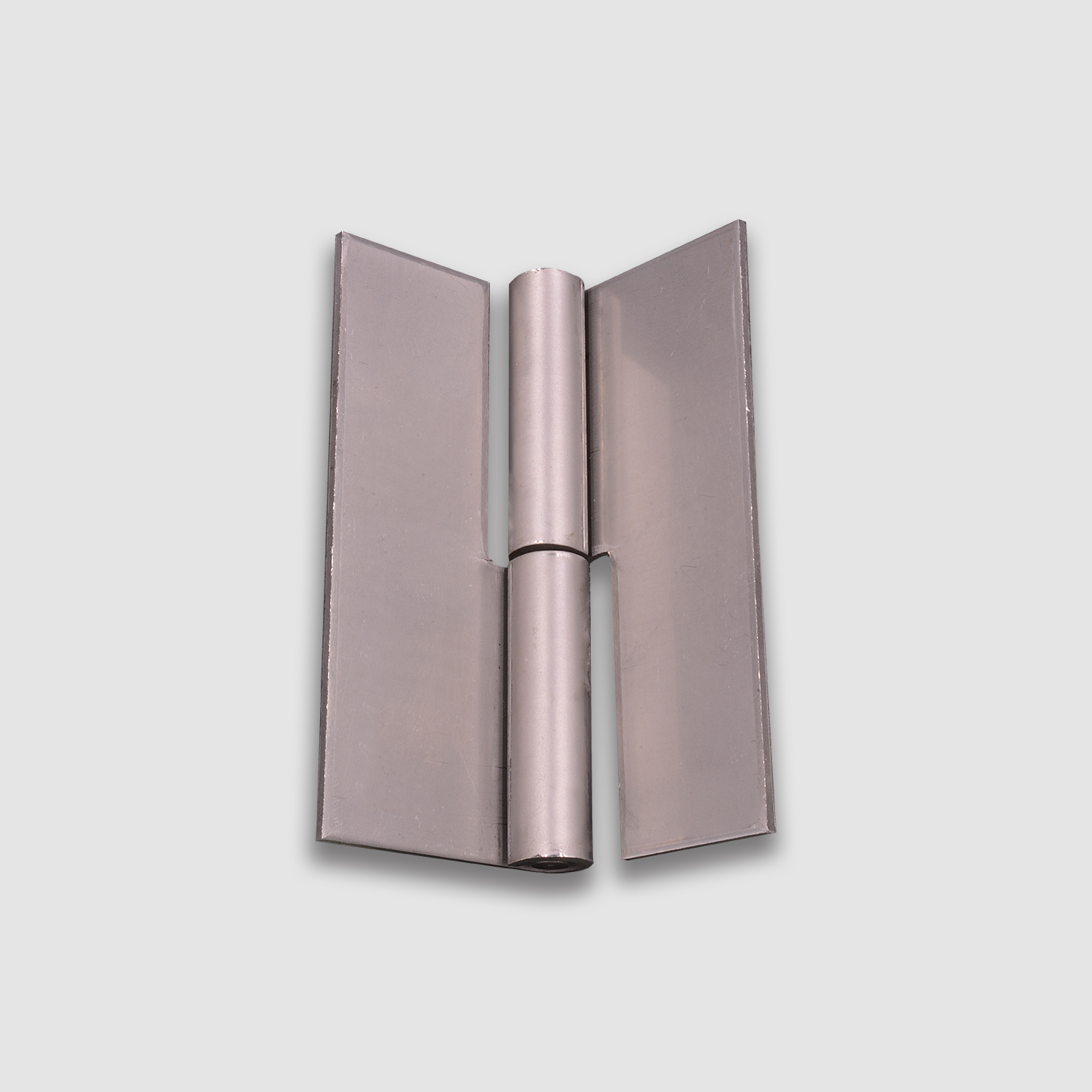

Our P505 hinges are a range of standard style lift-off hinges in a variety of sizes
| |
Material | MS,SS |
Holes | Undrilled |
Pin | 4.7mm |
Length | 76mm |
Width | 51mm |
Gauge | 1.5mm |

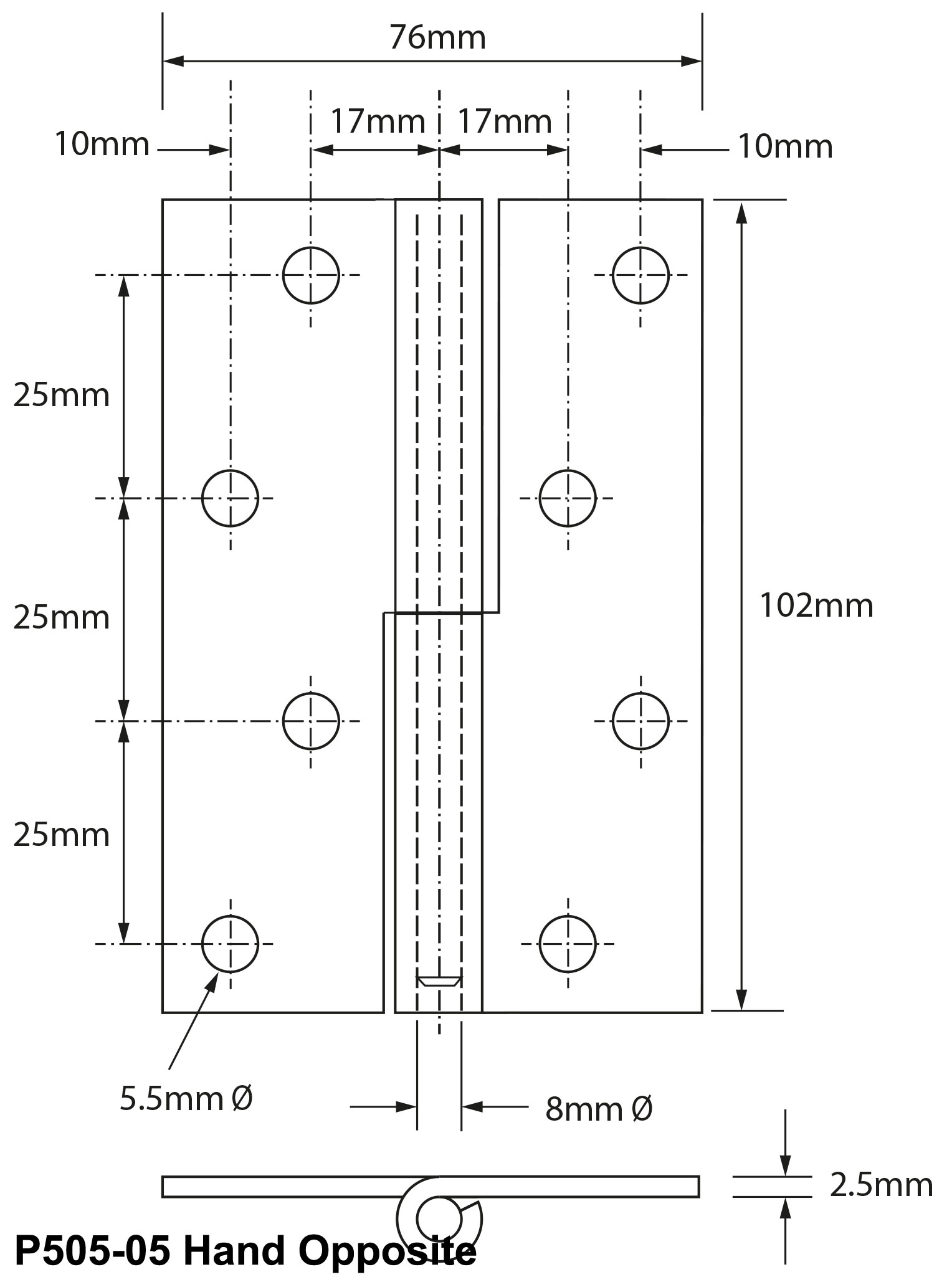

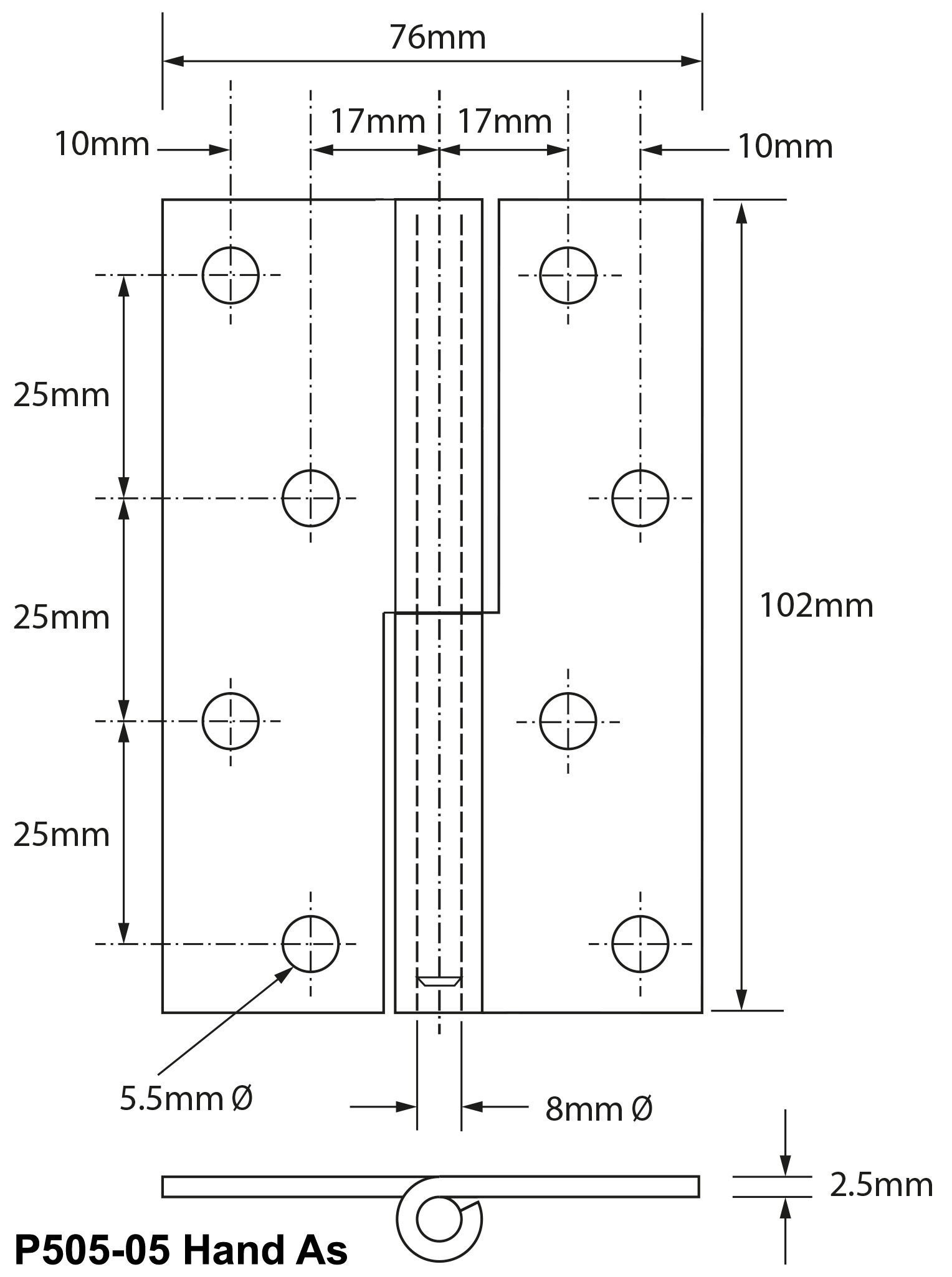

Please note, these hinges are handed. When ordering, please refer to the handing images below and specify if the hinge you need is “Hand As” or Hand Opposite.
